For water supply from wells or reservoirs.
For domestic use,for civil and industrial applications.
For garden use and irrigation.
Maximum fluid temperature up to +40℃.
Maximum sand content:3%.
Maximum immersion:15m.
Minimum well diameter:4".
Rewindable motor
Three-phase:380V-415V/50Hz
Single-phase:220V-240V/50Hz
Special mechanical seal
Other voltages or frequency 60 Hz
(according to our general sales conditions).

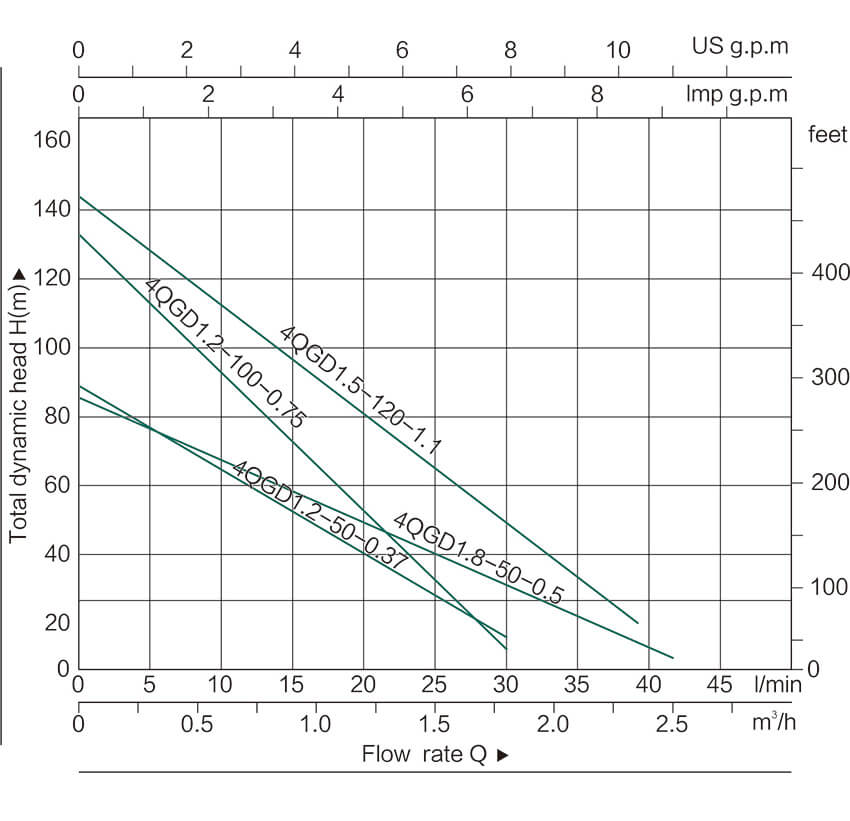

| MODEL | P₂ | Capacity (m³/h) |
Head (m) |
Outlet (inch) |
Spead r/min |
Dimensions(mm) | |||
| 1~220V/240V | 3~380V/415V | KW | HP | ΦD | L | ||||
| 4QGD1.2-50-0.37 | 4QG1.2-50-0.37 | 0.37 | 0.5 | 1.8 | 80 | 1" | 2850 | 96 | 580 |
| 4QGD1.8-50-0.5 | 4QG1.8-50-0.5 | 0.5 | 0.67 | 2.5 | 80 | 1" | 2850 | 96 | 640 |
| 4QGD1.2-100-0.75 | 4QG1.2-100-0.75 | 0.75 | 1.0 | 1.8 | 130 | 1" | 2850 | 96 | 720 |
| 4QGD1.5-120-1.1 | 4QG1.5-120-1.1 | 1.1 | 1.5 | 2.3 | 140 | 1" | 2850 | 96 | 730 |
| Components | Material |
| Delivery casing | AISI 304 SS |
| Strainer | AISI 304 SS |
| Motor external casing | AISI 304 SS |
| Top Cover | Cast-iron G20 UNI5007 |
| Bottom support | AISI 304 SS |
| Mechanical seal | Carbon-Ceramic |
| Shaft | AISI 304 SS-C1045 |
