For water supply from wells or reservoirs.
For domestic use,for civil and industrial applications.
For garden use and irrigation.
Maximum fluid temperature up to +40℃.
Maximum sand content:0.15%.
Maximum immersion:50m.
Minimum well diameter:4".
Rewindable motor
Three-phase:380V-415V/50Hz
Single-phase:220V-240V/50Hz
Equip with start control box or digital auto-control box
Curve tolerance according to ISO 2548
Special mechanical seal
Other voltages or frequency 60 Hz
(according to our general sales conditions).

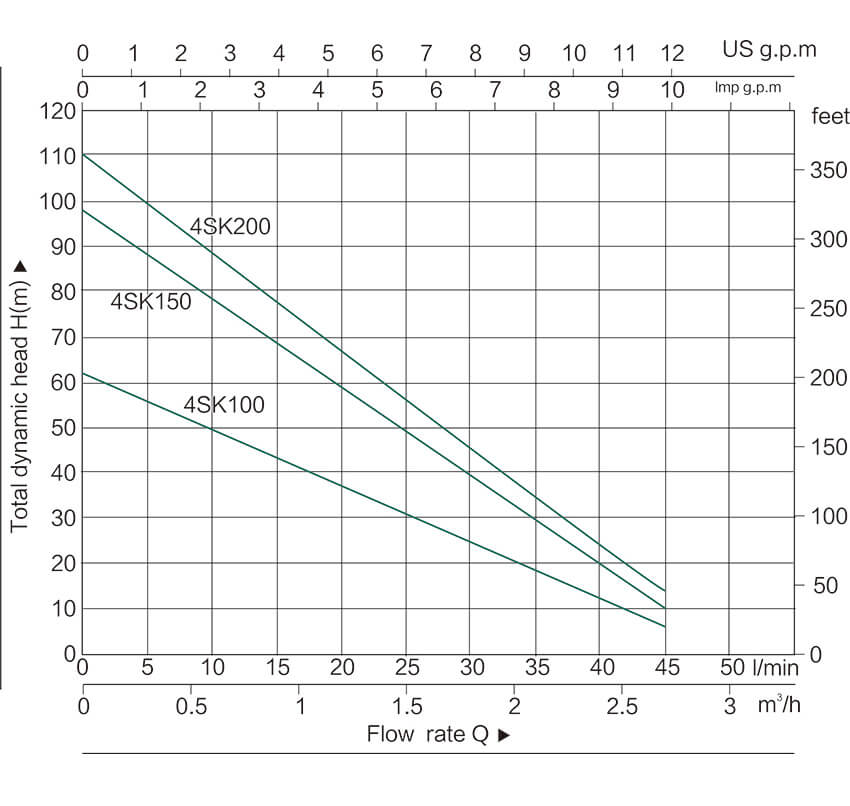

| MODEL | P₂ | DELIVERY n≈2850r/min | ||||||||||||
| 1~220V/240V | 3~380V/415V | KW | HP | Q(m³/h) | 0 | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 |
| Q(l/min) | 0 | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | ||||
| 4SKM100 | 4SK100 | 0.75 | 1 | H(m) | 60 | 56 | 50 | 43 | 37 | 31 | 25 | 18 | 12 | 6 |
| 4SKM150 | 4SK150 | 1.1 | 1.5 | 98 | 88 | 78 | 69 | 59 | 49 | 39 | 30 | 20 | 10 | |
| 4SKM200 | 4SK200 | 1.5 | 2 | 110 | 104 | 92 | 81 | 69 | 58 | 46 | 35 | 24 | 14 | |
| Components | Material |
| Delivery casing | Cast-Cu ASTM280 |
| Suction lantern | ① Cast-Cu ASTM280 ② AISI 202 SS |
| Diffuser | ① Cast-Cu ASTM280 ② AISI 202 SS |
| Impeller | Cast-Cu ASTM280 |
| Strainer | AISI 304 SS |
| Motor external casing | AISI 304 SS |
| Top chock | ① Cast-Cu ASTM280 ② Cast-iron G20 UNI5007 |
| Bottom support | AISI 304 SS |
| Mechanical seal | Special seal for deep well(carbon-SIC/TC) |
| Shaft | AISI 316 SS-C1045 |
| Bearing | NSK |
| Seal lubricant oil | Oil for food machinery and pharmaceutic use |
